"The event occurred on June 29th, on our native allotment near Kotzebue (Illivak). We left home in the morning and when we came back around 8:00 PM in the evening the whole lake had drained! It looked like it was blown up with dynamite."
Observation by Susan Schaeffer Tessier:
It was just a normal lake near the ocean. There is a big bank and willows and on the other side is the ocean. My husband Tim and I left home in the morning and when we came back around 8:00 in the evening the whole lake had drained! There was a hole that had blown out and it had drained into the ocean. The hole is now about 4 - 5 feet deep. There is like 3-4 feet of permafrost that melted over the past few weeks.The length of the channel that was cut is about 20 feet.
The lake is located about 3.2 miles NE of Kotzebue and is on our land, part of our native allotment. You can see where it blew out from the beach. It looked like it was blown up with dynamite. We were surprised to see a lot of little shrimp at the bottom, that were living in the bottom of the lake. The ducks have been eating them. We had a muskox that came in that was curious and then a bear that walked all through the mud and left tracks. The pond has become quite an attraction for the animals. We are sad to lose the lake because in winter, after it froze up, we used to go cut ice chunks for drinking water. It has really clear water. If we get enough snow we can use snow water instead, but it is not as good.
The ocean side has been eroding really fast since the rains we had last year. We noticed a sink hole forming about 20" from the bank. It must have been sinking from both sides. Anyway, we were really surprised, coming home and the lake was just gone. It was totally unexpected but looking at the erosion now and melting over the past two years, it makes sense.
Follow up comment from Susan Tessier:
When the lake first drained the hole was only about 1 in diameter. It’s about 20-30 now from the melting. Also, about week before the lake drained I took pictures of a beaver in the lake. This was the first beaver I had ever seen in there.
Comment by Ingmar Nitze:
Great find. This lake drained somewhen between June 20 and June 30 2022.
The imagery comes from the Sentinel-2 Satellite, with a pixel size of 10m/~30ft. The images shown are false-color composites, which also include information, which is invisible for the human eye e.g. infrared to enhance vegetation information. In these images, red indicates vegetation, dark blue are water bodies, white patches are snow. Wet soil appears in grey, thus we can differentiate between June 20 and and June 30, where the same spot turns from dark blue to grey due to the change from water to wet dark soil.
Lake dynamics, both lake creation/expansion and drainage are quite common in permafrost regions, particularly in this region of Alaska. The wider region (Baldwin Peninsula, Seward Peninsula) has been affected by widespread lake drainage over the past years, particularly 2018. Lake dynamics are typically caused by permafrost degradation or thaw, which may lead to ground subsidence and/or destabilization. Furthermore, beaver acticivity is also leading to increased lake dynamics on the Baldwin Peninsula.
Update from Ingmar Nitze 8-12-22:
Here (see link) is the full resolution aerial image from July 3 2021 shot at 3.59 pm local time. The file is 13 MB in size (just in case you are bandwidth restricted) https://1drv.ms/u/s!AobXXrP933xWh7IhnynfxyDXemNICw?e=MUCHdm
Comment by Jackie Schaeffer:
Here is another picture from yesterday (8-8-22). Susan estimates the hole to be approximately 30 feet deep.
Comment by Ben Jones:
The photo from yesterday (8-8-22) is incredible. It's a window into the past and a great opportunity to study the permafrost that is exposed there. This is a really interesting observation. Oftentimes we don't discover lake drainage events until a year or two afterwards which limits our understanding of the processes involved. It's awesome to have such first hand observations.
Update from Ben Jones, 8-19-22:
Hi Mike, Susan's husband, Tim, took me to the drained lake on their native allotment yesterday. We had fun hanging out there and checking things out. I flew my small drone and processed the images to make a 3D digital surface model. I attached a couple of the initial outputs. I'll work more on the images from back home next week but if you wanted to post these to the LEO posting that would be sweet and okay with them. Thanks again Susan and Tim!
Comment by Guido Grosse (in reply to message from Ben Jones, Susan Tessier and Jackie Schaeffer):
Ingmar also pointed me at the lake drainage info from the LEO Network a week ago and we already spotted it on satellite images. Since it is so close to Kotzebue it would be fantastic to visit with you and Susan. The exposed permafrost is a great opportunity to study what is beneath the ground. We will have some survey equipment with us so we could probably do a survey of the freshly drained lake and share a 3D image of it with the network, ANTHC, and the community if of interest. The land, lakes, and coast are changing so quickly in recent years on the Seward Peninsula and the Baldwin Peninsula!
Update by Guido Grosse, 8-11-22:
Last year we were flying with our AWI DC-3 airplane Polar-6 over the region for the AWI-DLR-UAF Perma-X airplane campaign. I just browsed the imagery and luckily found the ones attached - showing the lake (and the cabins next to it) on July 3 in 2021 probably just before lake drainage. The full resolution of these images is a few inches (several cm) but to big to send via email. The RGB has true color as the human eye would see it, the NIR sees it in near-infrared (water is black, wet is dark, tundra is bright). It is a real bummer to loose such a nice lake and water source next to the cabins.
Comment by Bruce Forbes:
In the mid-1980’s I studied the literally overnight drainage of a series of connected thermokarst lakes along the Upper Steese Highway, just north of Central, AK (cf Forbes 1992). Since 1991, I have been working on the Yamal Peninsula in West Siberia. In July 2005 I saw a large lake draining in the continuous permafrost zone just south of the Bovanenkovo Gas Field, where part of my research team was setting up camp for the summer. Over the next decade we have followed the social and ecological impacts of this particular lake, combining remote sensing and interviews with nomadic tundra Nenets reindeer herders. The lake had served as a critical fishing resource for collective and private Nenets herders from two different districts. After most of the lake drained, all the whitefish (siik) disappeared, but some muksun (a different whitefish species found only east of the Urals) remained in the deeper, undrained portion. As normally happens in such cases, within 1-2 years the exposed shallow lake bed was quickly carpeted by colonising rhizomatous graminoids (e.g. Carex and Eriophorum spp.) and ruderal herbs. Herders lamented the loss of fish. Yet, Interestingly, they reported that the flush meadows, which formed on the lake bed were so productive they remained green until October. Thus, herders would delay their southward migration to fatten up their animals before the long migration to the slaughterhouse at War-Sale. The flat tundra of Yamal is comparable to the North Slope and we can likely expect more such lake drying and draining as average active layer depths continue increase during ever warmer summers.
Reference: Forbes, B.C. (1992) History, ecology and biogeography of anthropogenic disturbance along the upper Steese Highway, interior Alaska. Journal of Northern Sciences 4: 1-15.
Comment by Vladimir Romanovsky:

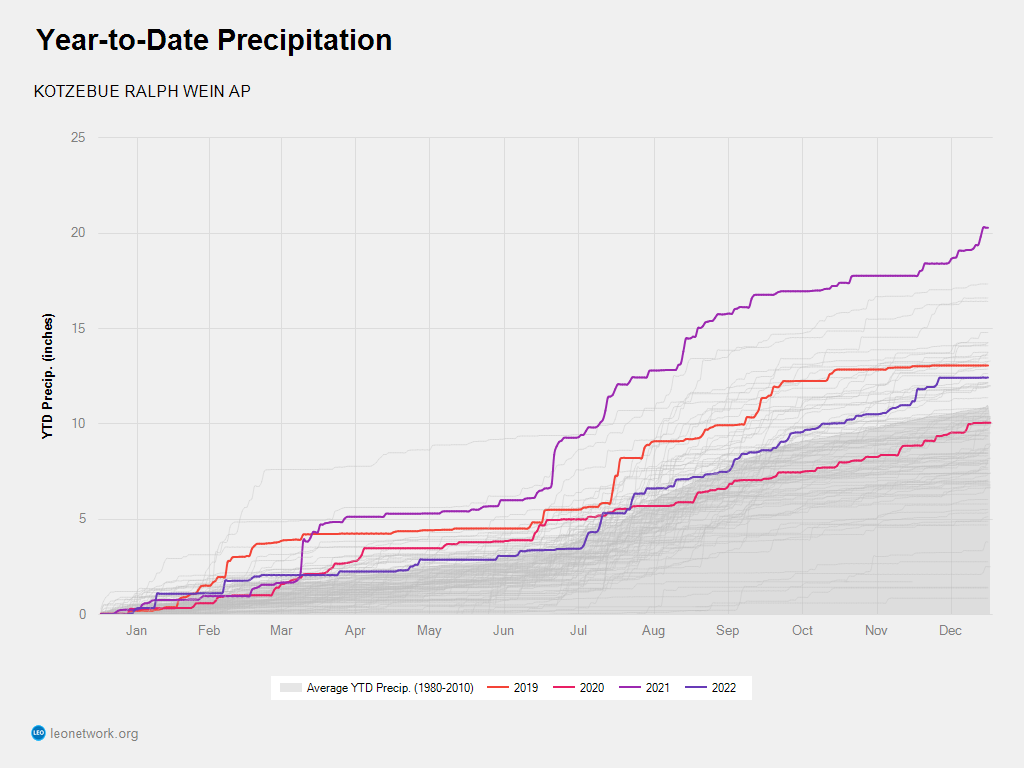

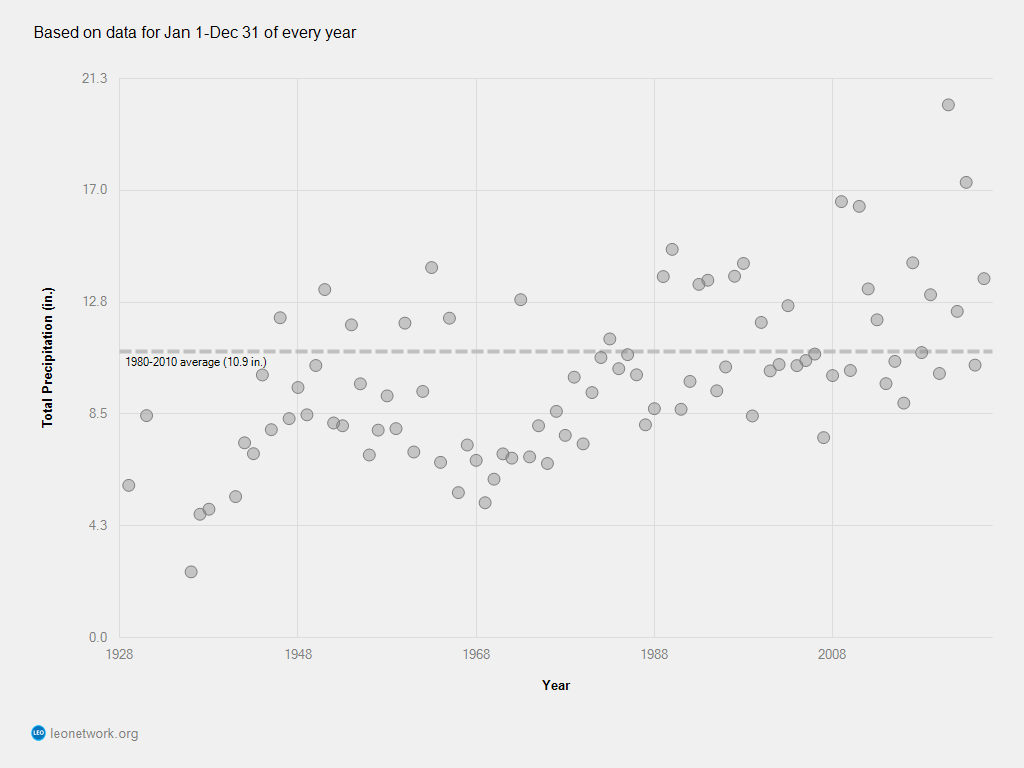

Water movement generally can have big impacts on permafrost. With a lot of rain, the soil becomes saturated which increases the depth of summer thaw and then water begins to run over the permafrost creating channels and thawing. As soon as the water starts to move, it triggers a whole new process. Channels, thawing, the creation of gullies. Moving water can make a very deep gully or tunnels in a short amount of time especially if the water moves along an ice wedge and melts the ice. It is a possibility that a talik or a deep active layer was developing there because of the previously (during the entire summer or even summer before) observed heavy rains (not just one week before the drainage).
Comment by Ken Tape:
I wanted to send around a few pics of a beaver burrow from the Nuna River, an upstream tributary of the Kobuk, since perhaps some of you haven't seen a burrow before. I had never seen burrows like this, and they were everywhere on the Nuna. What seemed to be elaborate tunnel systems dug where there was apparently no permafrost, and sometimes the burrows led up to the bench behind, other times not. 2 burrows in the first pic and 1 in the second pic. Third pic shows a burrow exit/entrance away from the water. There were countless examples. We may never know whether beavers played an immediate role in the drainage event, but the timing is certainly suspicious!
Comments from LEO Editors:
Another great resource for high-resolution coastal imagery is ShoreZone, a collection of low-altitude aerial photos of the entire coast of Alaska, plus parts of western Canada, Washington, and Oregon. The nearest ShoreZone photo to the site of the lake draining is attached to this post (that photo was taken in 2012). ShoreZone photos are free to use. LEO Network has created an easy-to-use browser for them, which we frequently use for posts like this one. Mike Brook
LEO Network would like to thank everyone that contributed their time and effort on this important post. It is a great example of the constuctuve dialogue that can occur between local knowledge experts and topic experts about specific events, dialogue that can help us to understand local vulnerabilities, regional trends and processes. Susan Tessier's inital observation and images sparked a discussion that brought together scientists from as far away as Germany to apply satellite and drone imagery, weather data and on the ground surveys. At LEO Network we see the importance of a singual event and the tremendous value and potential of these knowledge collaborations. We recognize the challenge of pulling together the array of data into a comprehensive picture and story, We are working on that. We also try to stay focused on the important and difficult to answer questions: is this a herald of more lake draining and erosion events to come. What does it mean for Tessier family, their home and their land? What does it mean for the coastal areas of the Arctic? Why did this happen so suddenly, or did it? One of the important observations made by Susan Tessier was that the erosion had been worse since the rains last summer. Using LEO Network weather tools developed by Mike Brook, we looked at the precipitation records from the summer of 2021. You can see these in the graphics provided below. We pose the question, how much does rain events contribute to permafrost thawing in the coastal area? We have reached out to the permafrost and climate science community to help us explore these questions.
Another interest and potentially significant piece of this story is the first-reported observation of a beaver in the lake, made by Susan Tessier only days before draining event took place. Ben Jones and Tim Tessier discussed this in detail because the beaver was seen in the same area as the blow-out, Ben and Tim have put forwards a theory that the beaver may be an important player in the draining event, contributing through borrowing to the weakening of the bank area. At LEO Network we wonder if warming and thawing conditions (potentially brought on by increasing precipitation) may have set the stage for beaver introduction to this lake. The fact that warming and thawing have contributed to increase size and range of willows is well established along with the northward movement of beaver into Arctic Alaska. We have forwarded this post to Ken Tape who studies beaver expansion in the Arctic for his comment and insights. Again thanks everyone for bringing your knowledge to LEO Network. MIke Brubaker
